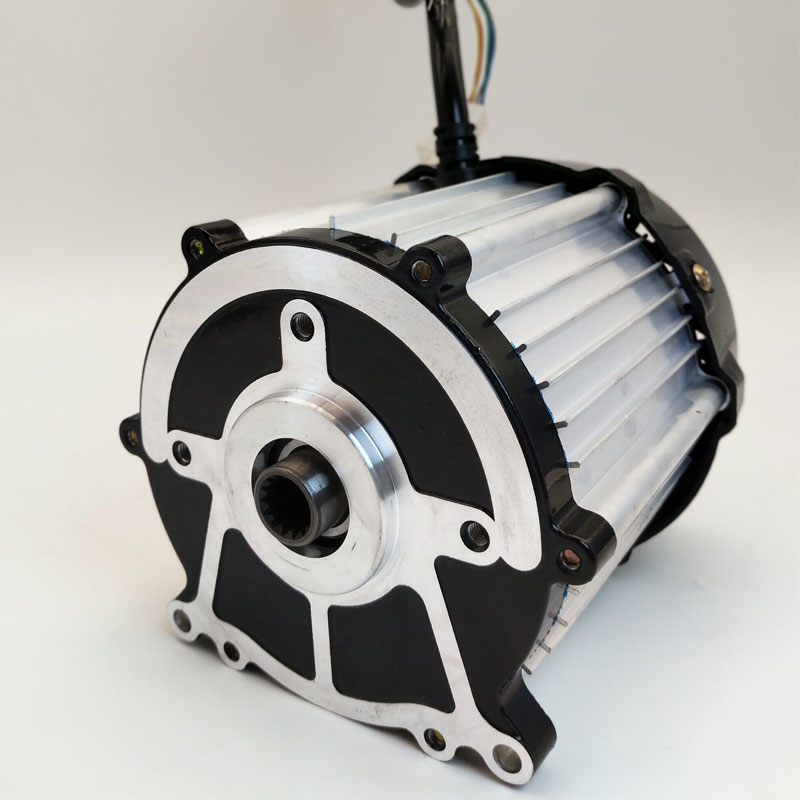

The Huanyu 120 Square Wave Motor is tailored for efficient power requirements of electric tricycles, caravans, leisure vehicles, and hand carts.
This motor stands out in the market with its exceptional stability and high energy efficiency ratio.
Featuring advanced permanent magnet materials, it delivers durable and powerful output, effortlessly handling daily commutes and short trips.
Its compact design ensures easy installation while maintaining low noise and vibration during vehicle operation, providing users with a comfortable driving experience.
The Huanyu 120 Permanent Magnet Brushless Motor is the ideal choice for your electric mobility needs.
Product Advantages: Technical Strengths – Instant High Torque: Enables rapid acceleration and strong starting power, perfect for urban driving and heavy-duty applications.
Heavy-Duty Capacity: Ensures stable performance even when fully loaded, enhancing work efficiency
Why choose our brushless DC motor?
Heavy duty high torque: This motor is equipped with high-performance rare earth magnet rotors, which can generate huge starting torque. Even when fully loaded, it can easily handle tilts exceeding 25 degrees.
Maintenance free operation: The “brushless” design means no carbon brush wear or replacement. This means zero maintenance and no downtime for your business or personal use.
Specially designed for extreme conditions: The motor features a sturdy die cast aluminum casing with excellent heat dissipation performance. The protection level is IP54, completely dust-proof, and can withstand high-pressure water jets or heavy rain. It is an ideal choice for farms, construction sites, and humid climates.
Whisper Silent Performance: Advanced gear machining technology and optimized magnetic circuit design ensure that this motor runs extremely smoothly and quietly. There is no longer a noisy and dull sound, only a smooth and comfortable ride.
Electric tricycle motors are mainly suitable for various types of electric tricycles and related transportation vehicles. Depending on their power, type, and application scenarios, they can be widely used in multiple fields such as urban transportation, agriculture, logistics, and environmental sanitation.
1、 Apply by vehicle type
Household electric tricycle/Elderly Mobility Scooter Motor
Applicable motors: 350W-500W DC brushless motor or permanent magnet synchronous motor
Application scenarios: Short distance commuting for daily family travel, grocery shopping, picking up and dropping off children, etc
Features: Low energy consumption, low noise, simple operation, and a typical range of 60-80 kilometers
Advantages: Suitable for narrow urban roads, convenient parking, and an ideal choice for the elderly and family users
2、 Freight electric tricycle/Agricultural Tricycle Motor
Applicable motors: 750W-1500W high-power motors, commonly available in specifications such as 800W, 1000W, 1200W, etc
Application scenarios: commercial logistics such as express delivery, agricultural product transportation, and market delivery
Features: Strong load-bearing capacity (300-600 pounds or more), good climbing performance, and a range of 50-70 kilometers
Advantages: Compared to gasoline vehicles, it is more environmentally friendly and energy-saving, with low operating costs, suitable for “last mile” delivery
3、Factory/Engineering Electric Tricycles/Construction Site Tricycle
Applicable motors: 1500W-3000W high-power motors, commonly equipped with 15-24 tube controllers
Application scenarios: Material transportation within construction sites, mining areas, and factories
Features: Suitable for complex road conditions, with a load capacity of over 1 ton, strong torque and climbing ability
Advantages: No exhaust emissions, suitable for indoor or environmentally demanding places, low maintenance costs
4、Urban transportation and logistics
Application scenarios: Urban short distance delivery, community express delivery, food delivery services
Recommended configuration: 60V52Ah battery paired with 1000W motor, with a range of 60-70 kilometers
Advantages: Flexibly navigate through narrow urban roads without being affected by traffic policies, with operating costs only one-third to one-half of those of fuel vehicles
5.Farm Utility Vehicle Motor
Application scenarios: Farm transportation of feed and crops, orchard picking and transportation, maintenance of landscaping and greenery
Recommended configuration: 750W-1000W motor, suitable for muddy roads and slopes
Advantages: Low noise characteristics meet the requirements of rural environments, high torque adapts to complex road conditions in farmland, and can tow small agricultural tools
6.Tourism and leisure
Application scenarios: Scenic spot sightseeing vehicles, golf course commuting vehicles, community patrols
Recommended configuration: 800W-1000W permanent magnet synchronous motor, emphasizing quietness and comfort
Advantages: Smooth and quiet operation, enhanced tourist experience, environmentally friendly features that meet the requirements of the scenic area
When selecting a motor, factors such as usage scenarios, load requirements, road conditions, and budget should be comprehensively considered, and motor parameters should be reasonably matched to achieve optimal performance and user experience. For most commercial purposes in cities, brushless motors ranging from 800W to 1000W are an ideal choice; For engineering or agricultural purposes, it is recommended to choose high-power motors above 1200W
| Parameter category | Common specifications | Applicable scenario description| |
|---|---|---|
| Rated power | 1000W-1500W | Choose 350-500W for household use, 750-1500W for freight use, and above 1500W for engineering use |
| Rated voltage | 48V/60V/72V | 48V is suitable for light load, 60V/72V is suitable for heavy load and long endurance requirements |
| Rated current | 9.4A-20.0A | Should match battery capacity to avoid overload |
| Rated speed | 2500rpm-3100rpm | Low speed is suitable for climbing, high speed is suitable for flat roads| |
| Rated torque | 1.19-2.56N · m | The greater the torque, the stronger the climbing ability |
| motor shaft | Internal 14 teeth | |
| Motor type | brushless motor | |
| position sensor | Hall (5-pin) | |
| Protection level | IP54 | |
| insulation class | F | |
| working system | S2 60min | |
| Waveform | Square wave |
