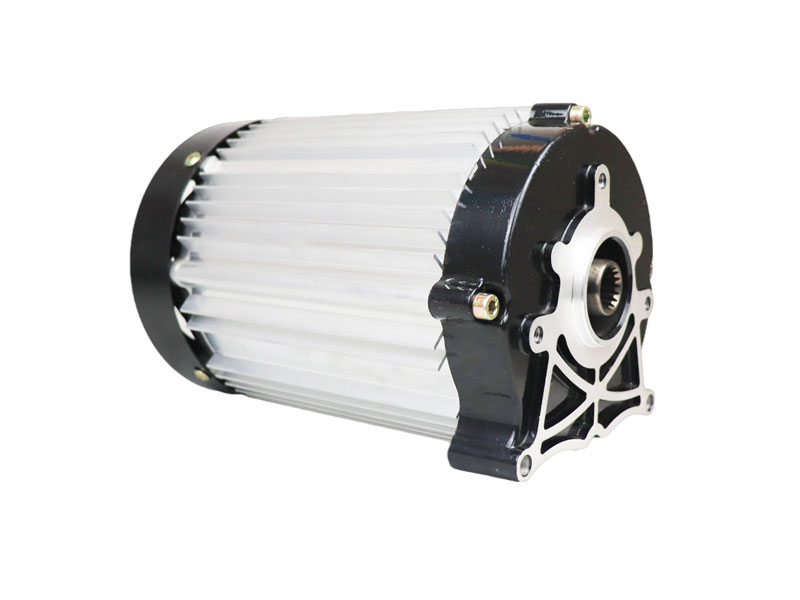

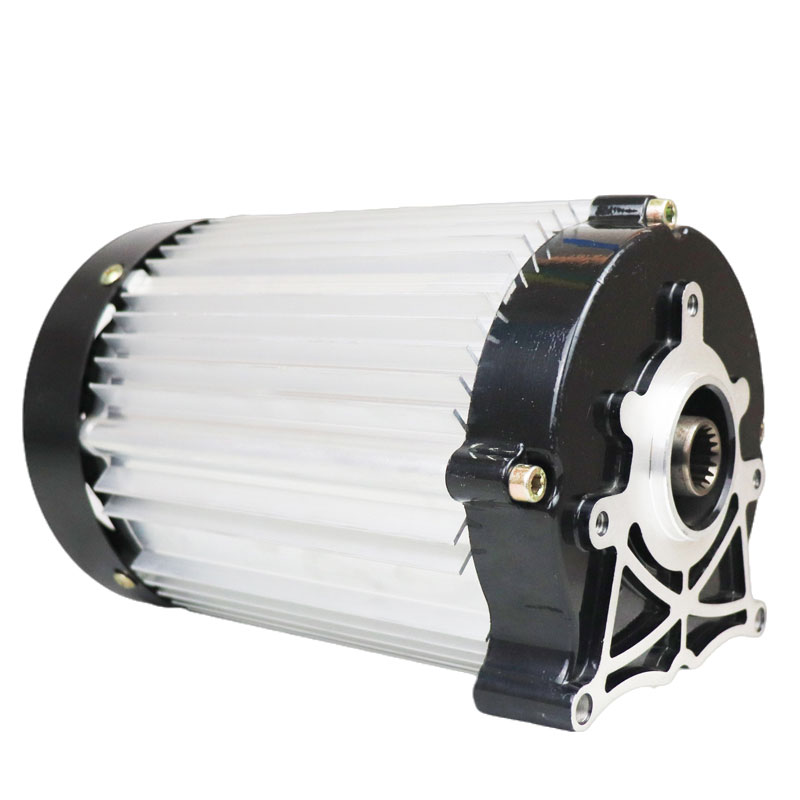

Our 1000W–2200W Permanent Magnet Brushless DC Motor (BLDC) is specially designed for electric tricycles, cargo trikes, and light utility vehicles.
With high torque at low speed, robust aluminum housing, and excellent efficiency, this motor is ideal for heavy-load transportation and long-term commercial use.
Why choose our brushless DC motor?
Key Specifications
Power Range: 1000W / 1500W / 2000W / 3000W / 4000W
Voltage Options: 48V / 60V / 72V / 80V
Motor Type: Permanent Magnet BLDC Motor
Cooling Method: Air Cooled
Housing: Aluminum Alloy

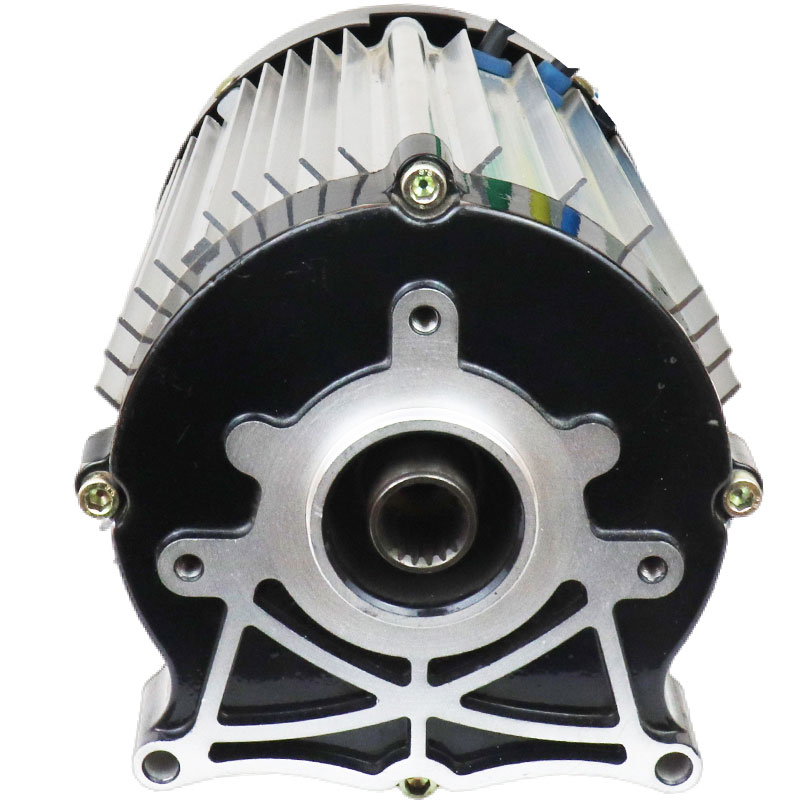

Output Shaft: Spline Shaft (customizable)
Key Features & Advantages
High Torque at Low Speed – Ideal for electric tricycles and farm vehicles under heavy load
Permanent Magnet Design – Stable output and high efficiency
Excellent Heat Dissipation – Aluminum housing for hot and humid climates
Long Service Life – Designed for continuous operation
Low Maintenance – Simple and robust structure
Robotic tracked chassis (UGV/AGV/UGV platforms)
Crawler inspection robots
Firefighting and rescue robots
Agricultural mini tracked vehicles
Industrial crawler carriers
All-terrain tracked chassis systems
Engineering and construction crawler bases
Applications
Electric Tricycle Applications
Electric passenger tricycles
Electric cargo tricycles
Three-wheel electric delivery vehicles
Agricultural & Farm Machinery Applications
Electric farm utility vehicles
Mini electric tractors
Agricultural transport vehicles
Electric agricultural equipment
Power Selection Guide
1000W–1500W: Light passenger electric tricycles
2000W–3000W: Cargo tricycles and utility vehicles
4000W: Heavy-duty agricultural machinery and farm vehicles
Our engineers can recommend the most suitable motor based on your load, speed, and working conditions.
Compatible Motor Controllers
We provide matched BLDC motor controllers optimized for different power levels and voltages. Controllers can be customized to meet local requirements and driving conditions.
OEM & Customization Service
We support OEM and ODM customization, including:
Power and voltage adjustment

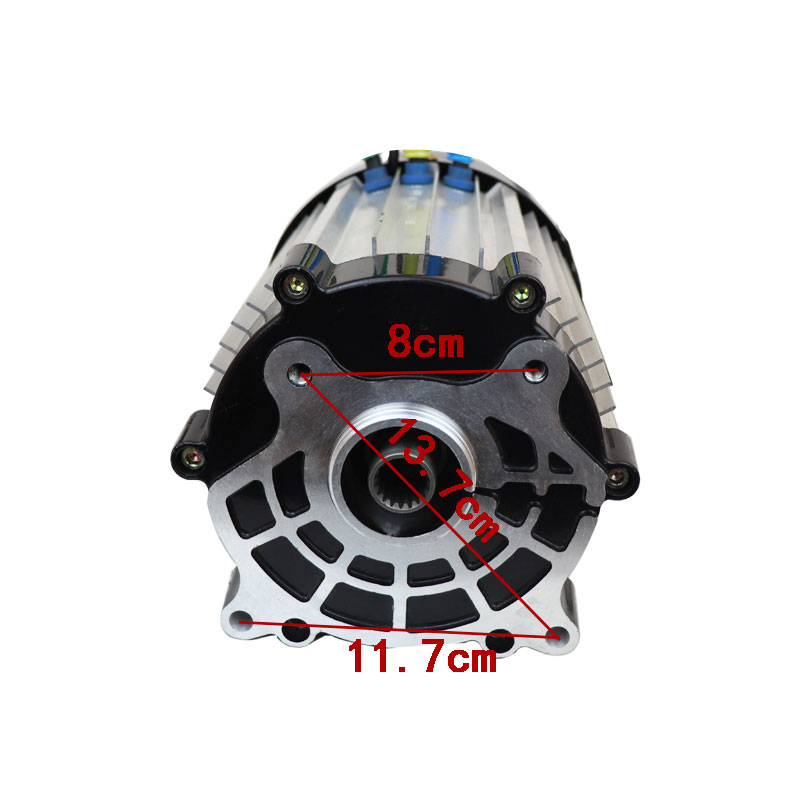

Shaft and mounting customization
Speed and torque tuning
Labeling and packaging customization
With extensive export experience, we help customers build reliable electric vehicle and agricultural machinery solutions.
Technical Specifications
| Parameter | Specification | Parameter | Specification |
| Model | 133 | Rated voltage | 48 v/60 v/72 v/80 v |
| rated voltage | 1000 W-2200 W | Rated speed | 3200rpm |
| Magnetic steel grade | 38 H | Rotor height | 50 mm~80 mm |
| polar pair | 4 | Motor color | silver, black |
| Motor Shaft | 18-tooth internal spline shaft | thermal classification | F |
| position sensor | Hall (5-pin) | Protection level | IP54 |
| Motor type | brushless motor | working system | S2 60min |
| Control waveform | Square Wave Control |
Product working environment
| Storage temperature range | 40℃～85℃ |
| Working temperature range | Motor: -40 ℃~55 ℃ |
| humidity | 0～95% |
